FAA CERTIFIED BELL 206

FAA CERTIFIED (AATD) BELL 206 / BELL 407 RECONFIGURABLE

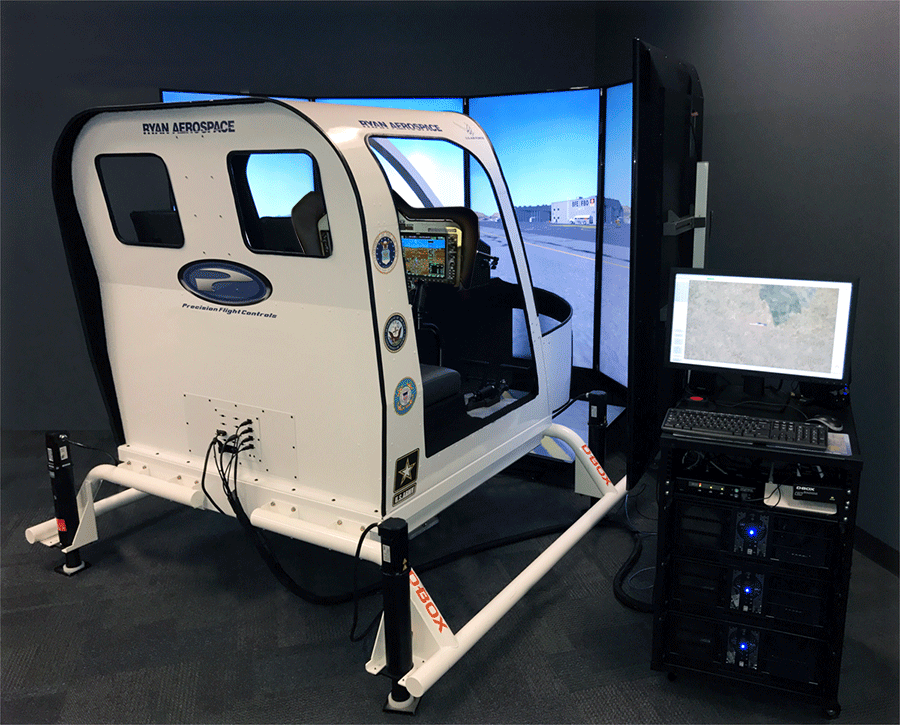

In partnership with Precision Flight Controls (PFC) based in Sacramento, California, RYAN AEROSPACE is proud to present the Bell 206 FAA certified helicopter simulator. This device can also be reconfigured as a Bell 407GX.

SUMMARY OF FEATURES AND BENEFITS

Standard features:
  • All aluminum / steel cockpit (fiberglass version available)
  • Powder coated finish

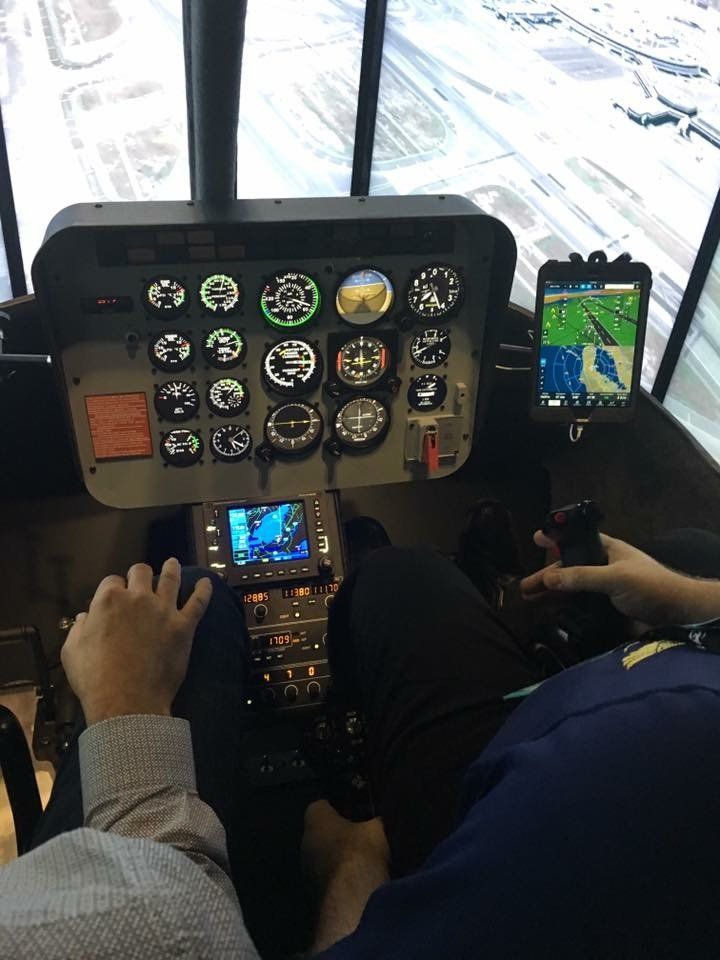

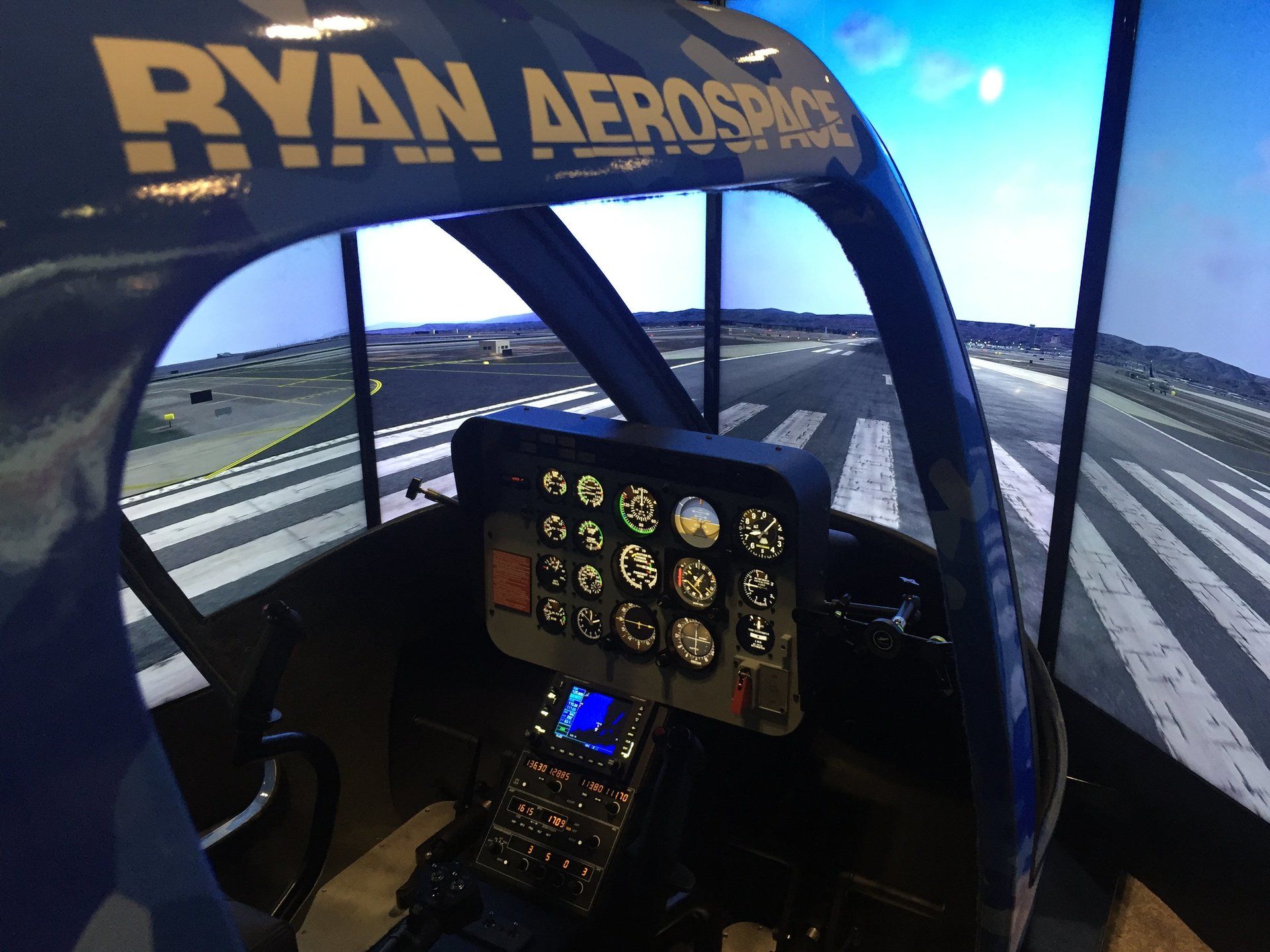

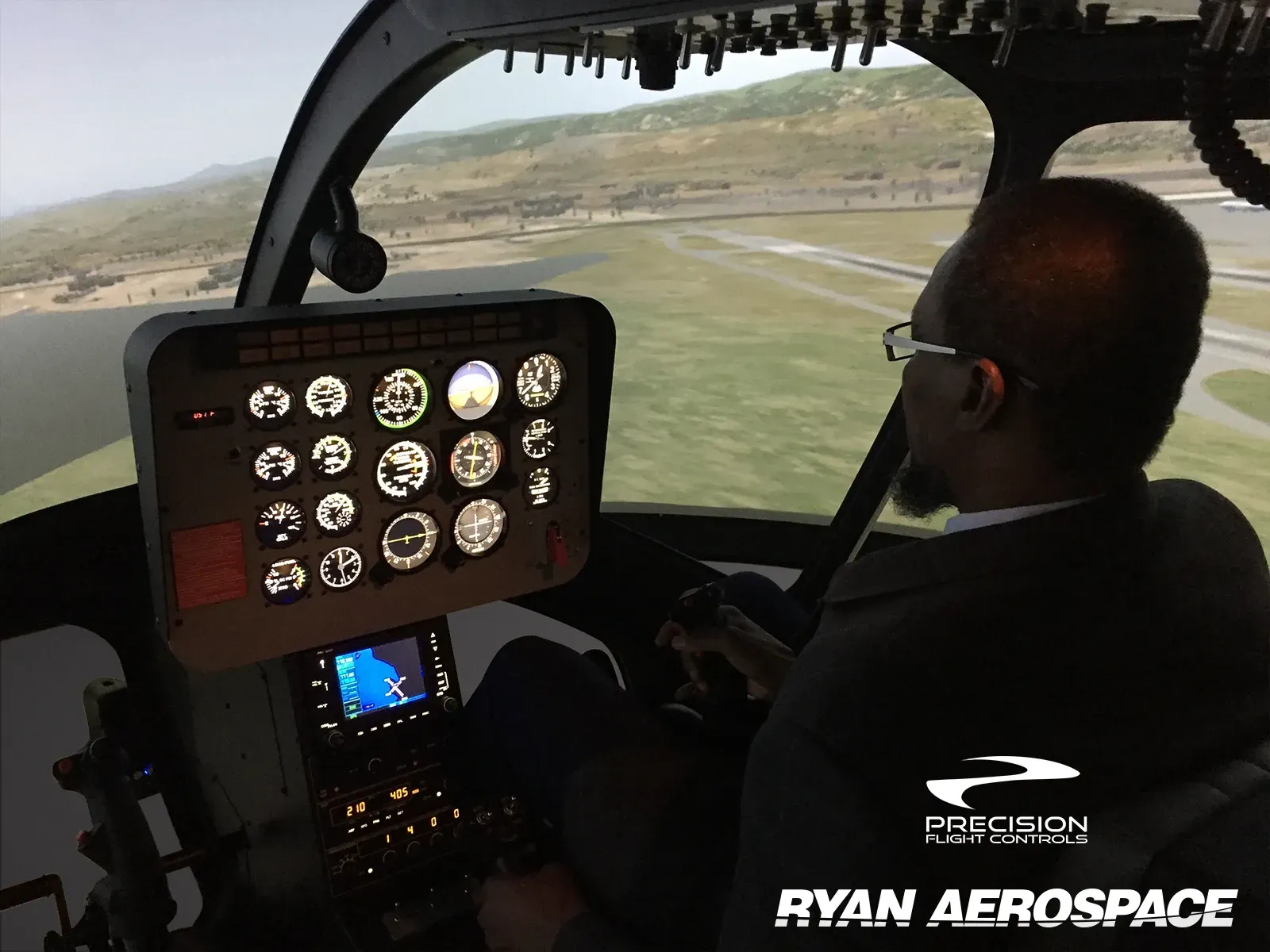

Bezel instrument panel
  • Annunciator Panel
  • Attitude Indicator
  • Airspeed Indicator
  • Heading Situation Indicator
  • Torque Percent Indicator
  • Turn and Bank Indicator
  • Vertical Speed Indicator
  • OBS 2
  • ADF Indicator
  • Engine Oil/Engine Temp
  • Torque Percent Indicator
  • Transmission Oil Temp/Pressure
  • Turbine Out Temperature Gauge
  • Fuel Quantity /Pressure Gauge
  • Rotar Power Percent/RPM
  • Fuel Valve Shut Off Switch

Digital Avionics
  • PFC 530W GPS (WAAS)
  • NAV/COMM 2
  • ADF
  • Transponder

Flight Controls
  • Anti-Torque Pedals with hydraulic dampening
  • Cyclics with electronic force trim function. Friction control knob included
  • Collective (replica) with twist throttle, idle release latch and working buttons and switches. Hydraulic dampening and friction control knob included

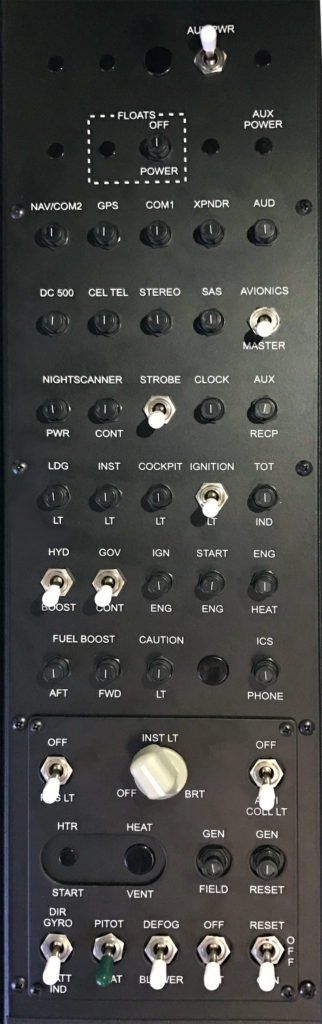

Overhead Panel Features (switches and circuit breakers)
  • Aux Power Switch
  • NAV/COM 2
  • GPS
  • COM1
  • XPNDR
  • Audio Switch
  • Avionics Master Switch
  • Ignition Switch
  • Hydraulic Boost Switch
  • Gov Switch
  • Position Lights
  • Instrument Lights Dimmer
  • Battery Master Switch
  • TOT Indicator Switch
  • Strobe Light Switch
  • Taxi Light Switch
  • Landing Light Switch
  • Start/Engine Switch
  • Pitot Heat Switch
  • DIR GYRO Switch
  • Defog / Blower Switch
  • Generator Field Switch
  • Generator Reset Switch
  • HTR Switch
  • Heat/Vent Switch
  • Fuel Boost Switch AFT/FWD
  • Anti Col Lgt Switch
  • Pilot and Co-Pilot Headset Jacks

Instructor Operating Station (IOS)
  • 27"-30" 1080p LED Monitor
  • Change weather conditions including wind and precipitation
  • Set time of day or night
  • Set location from world-wide database
  • Set failures to occur at a specific time or at a random time
  • Moving Map Includes:
  • Airways
  • Terrain (Worldwide Data)
  • Airports (Worldwide Data)
  • VORs (Worldwide Data)
  • IlS (Worldwide Data)
  • Glide Path Display
  • Airspeed
  • Direction
  • Altitude
  • Instruments
  • Re-Positioning
  • Weather
  • Radio Frequencies
  • Airport Information
  • Compass Rose/DME/VOR/Fixes
  • Set To Airport:
  • 3 and 10 Mile Final Approach
  • Map Positioning
  • Traffic
  • Weather
  • Failures
  • Pause
  • Freeze
  • Record and Playback

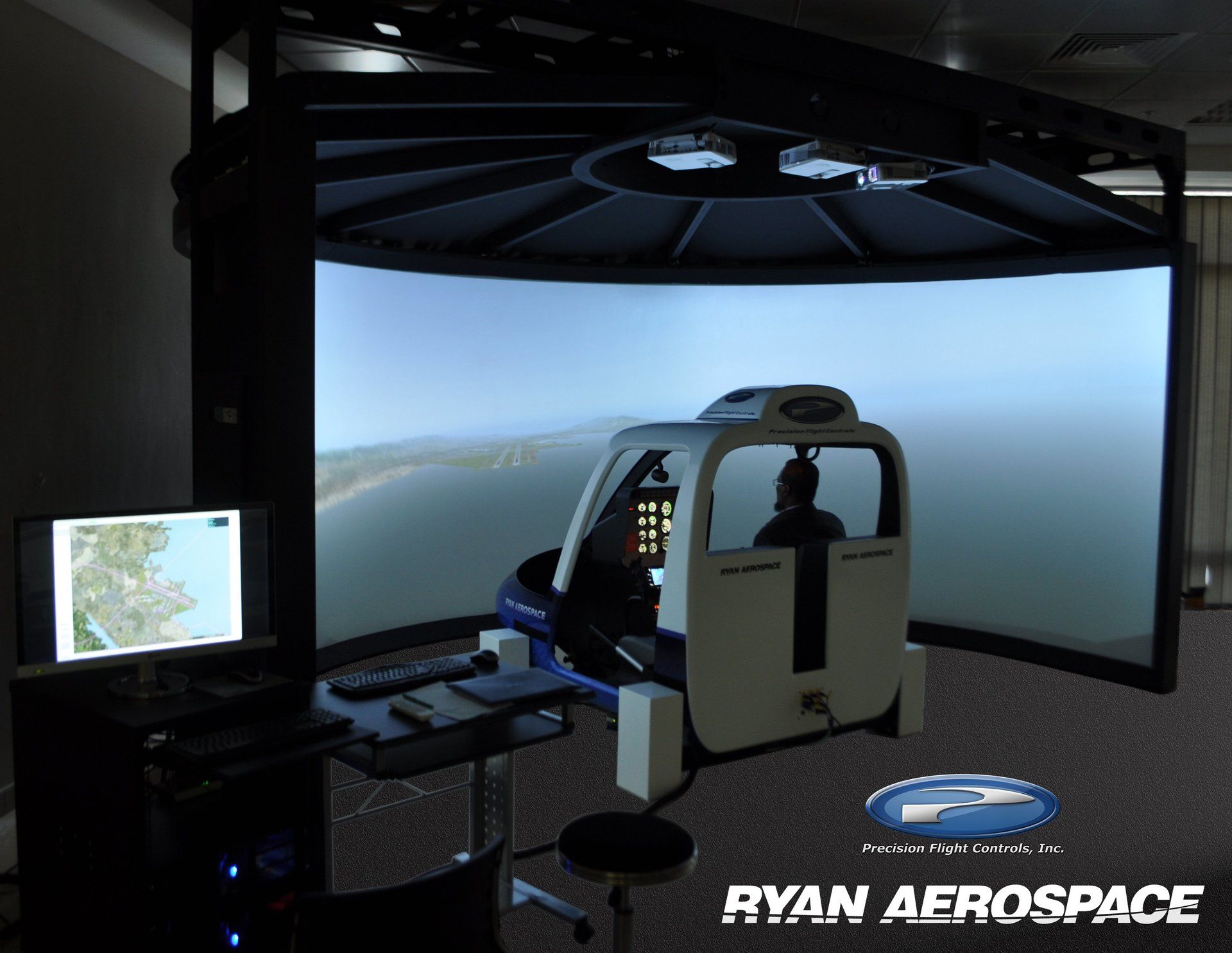

Visual System Options
  • External 70" 4k Monitors (3 or 5) with monitor support brackets
  • External 60" 4k Monitor (3 or 5) with monitor support brackets
  • Projection domes (with three projectors) with image blending and warping software
Center Control Console
  • Dim Caution Light Switch
  • Engine Anti-Icing
  • Hydraulic System Switch

Visual and Navigation Software

Worldwide Visual Database

Worldwide Navigational Database

Updateable Nav Data (Jeppesen)

Custom Pilot and Co-Pilot's Seating

Skid Platform

Speaker System (internal and external sounds)
